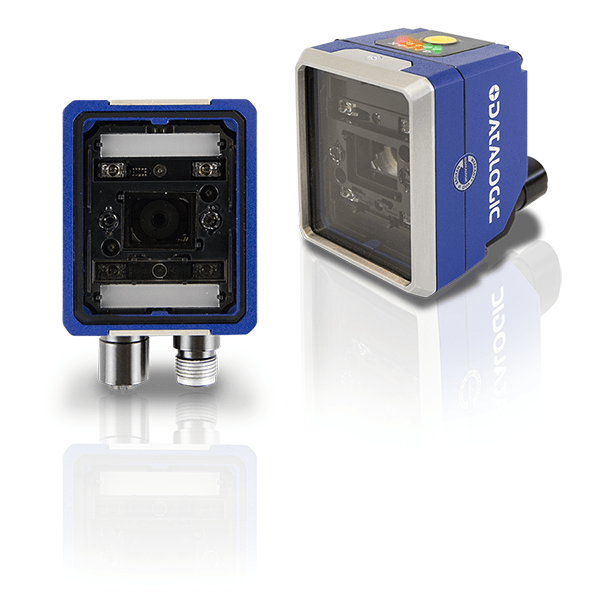

Matrix 220 görüntü bazlı (Imager) barkod okuyucu, 1.2 MP yüksek çözünürlüklü sensör ve yeni çok çekirdekli işlemci platformu ile özellikle Elektronik, Otomotiv, Paketleme ve Doküman İşleme konularında ideal çözümler sunar.
Entegre ultra esnek aydınlatma sistemi sayesinde, DPM (Doğrudan Parça İşaretleme) ile işaretlenmiş kodları okurken mükemmel sonuçlar alırsınız.
Kırmızı / mavi ışıklı DPM modelleri, tek bir modele gömülü polarize ve dağınık ışık seçenekleri sunar; Standart ve DPM Yüksek Güçlü aydınlatıcı modelleri, zorlu yüksek hızlı uygulamalar ve çift görüntü parlaklığı ve daha fazla okuma aralığı gerektiren DPM uygulamaları için ideal çözümdür.
Elektronik odak kontrolü (Electronic Auto Focus), değişken odak uzaklarına anında uyum sağlanarak her koşulda yüzde yüz başarılı okumayı garanti eder. Sonradan eklenebilen ESD ve Anti-YAG koruma filtreleri ile tüm çalışma koşullarında kullanılabilir.
IP65 ve IP67 endüstriyel kalite sınıfı ve -10 ila 50 ºC arasındaki çalışma sıcaklığı aralığı, İmalat Endüstrisi uygulamalarında en iyi kalite ve sağlamlığı garanti eder.
Matrix 220 görüntüleyici, yerleşik PROFINET / IO ve ETHERNET / IP endüstriyel fieldbus üzerinden Power on Ethernet (PoE) bağlantısı ile uygun maliyetli iletişim seçenekleri sunar.
Üstün performansı ile Matrix 220 görüntüleyici, Datalogic portföyünde yüksek bir performans / fiyat oranı sunar.
| Standard Model – | Direct Part Marking Model | |
| Dimensions | 78mm x 47mm x 38mm (3.07 x 1.85 x 1.50 in) Connector at 0° 57mm x 47mm x 58mm (2.63 x 1.85 x 2.30 in) Connector at 90° | |
| Weight | 173 gr (6,1 oz) | |
| Case Material | Aluminium case and plastic protective window cover | |
| Operating Temperature | -10 to 50°C (14 to 122 °F) | |
| Storage Temperature | -20 to 70 °C (-4 to 158 °F) | |
| Protection Class | IP65, IP67 | |
| ESD Safe | YES, available as front cover accessory | |
| YAG Laser Protection | YES, available as front cover accessory | |
| ESD Safe and YAG Laser Protection | YES, available as front cover accessory | |
| Flexible Cables | YES, available as accessories | |
| Power Supply | All models except PoE: 10 VDC to 30 VDC PoE models: 48 VDC | |
| Max Power Consumption | All models except PoE: 4,2 Watt (10 VDC to 30 VDC) PoE models: 4,8 Watt (48 VDC) | |
| Sensor | Image resolution 1280 x 960 (1.2 megapixel) – 1/3” CMOS global shutter | |
| Frame Rate | 45 frames/s | |
| Optical Focus Control | Electronic focus control | |
| Optical Models/Viewing Angles | 7 mm (38,3°), 12 mm (24,1°) | |
| Reading Range | STD-W & STD-W HP | DPM-R & DPM-B |
| Minimum: 40 mm | Minimum: 40 mm | |
| Maximum: 400 mm (7 mm lens), 600 mm (12 mm lens) | Maximum: 300 mm | |
| DPM-R HP | ||
| Minimum: 40 mm | ||
| Maximum: 400 mm (7 mm lens), 600 mm (12 mm lens) | ||
| Illumination | White light | Red light with polarizer and diffuser Red high power light with polarizer Blue light with polarizer and diffuser |
| White high power light | ||
| Aiming System | 2 Red Aimer LEDs | |
| Polarizing Filter | NO | YES embedded |
| Readable Symbologies | 1D Codes: all standard 1 dimensional symbologies | |
| 2D Codes: Data Matrix, QR Code, Micro QR, Maxicode, Aztec, Dot code Postal Codes: Royal Mail, Japan Post, Planet, Postnet and many more | ||
| Code Quality Metrics | 1D CQ Standard: ISO/IEC 15416 | |
| 2D CQ Standard: ISO/IEC 16022/18004, ISO/IEC 29158 (AIM-DPM), ISO/IEC 15415 | ||
| Embedded Communication Interfaces | All models except PoE: | |
| – Ethernet 10/100 Mbit/s: TCP/IP, UDP, FTP and Fieldbus PROFINET IO, Ethernet IP, Modbus TCP | ||
| – Serial RS-232/RS422FD up to 115.2 Kbit/s + Serial Aux RS-232 | ||
| PoE models: | ||
| – Ethernet 10/100 Mbit/s PoE Mode A and Mode B: | ||
| TCP/IP, UDP, FTP and Fieldbus PROFINET IO, Ethernet IP, Modbus TCP | ||
| – Serial Aux RS-232 | ||
| Reader Networking | Datalogic ID-NET™ | |
| Connectivity Modes | Pass Through, Master/Slave, Ethernet point to point | |
| Digital Inputs | All models except PoE: 2 inputs opto-coupled and polarity insensitive PoE models: 1 input opto-coupled and polarity insensitive | |
| Digital Outputs | 3 Outputs (not available on PoE models): Configurable NPN, PNP, PP short-circuit protected Using CBX the first 2 outputs are opto-coupled | |
| User Interface | X-PRESS™ Human Machine Interface | |
| Beeper, Push Button, 7 LEDs (Status, Communication , Trigger, Good Read, Ready, Power on, Network) Green spot and Red spot LEDs | ||
| Web Monitoring Interface | ||
| Device Programming | DL.CODE™ Windows-based software (programming via Ethernet or Serial Interface) with Javascript output formatter Host Mode programming | |
| X-PRESS™ | ||
| MATRIX 220 302-010 1.2MP DPM-R 7MM HP | 937900010 |
| MATRIX 220 305-010 1.2MP DPM-R 12MM HP | 937900009 |
| MATRIX 220 322-01A 1.2MP STD-R 7MM HP | 937900017 |
| MATRIX 220 325-01A 1.2MP STD-R 12MM HP | 937900018 |
| MATRIX 220 345-010 1.2MP STD-W 12MM HP | 937900008 |
| MATRIX 220 352-010 1.2MP STD-W 7MM | 937900000 |
| MATRIX 220 352-040 1.2MP STD-W 7MM POE | 937900002 |
| MATRIX 220 355-010 1.2MP STD-W 12MM | 937900001 |
| MATRIX 220 355-040 1.2MP STD-W 12MM POE | 937900003 |
| MATRIX 220 382-010 1.2MP DPM-R 7MM | 937900004 |
| MATRIX 220 382-040 1.2MP DPM-R 7MM POE | 937900006 |
| MATRIX 220 385-010 1.2MP DPM-R 12MM | 937900005 |
| MATRIX 220 385-040 1.2MP DPM-R 12MM POE | 937900007 |
| MATRIX 220 392-010 1.2MP DPM-B 7MM | 937900011 |
| MATRIX 220 392-040 1.2MP DPM-B 7MM POE | 937900013 |
| MATRIX 220 395-010 1.2MP DPM-B 12MM | 937900012 |
| MATRIX 220 395-040 1.2MP DPM-B 12MM POE | 937900014 |
| MATRIX 220 3U2-01U 1.2MP STD-UV 7MM HP | 937900023 |
| CAB-DS01-S M12-IP67 TO CBX 1M | 93A050058 |
| CAB-DS03-S M12-IP67 TO CBX 3M | 93A050059 |
| CAB-DS05-S M12-IP67 TO CBX 5M | 93A050060 |
| CAB-ETH-X-D ADAPTER CAB GETH-X to ETH-D | 93A050129 |
| CAB-ETH-X-M01 M12-IP67 GETH-X CAB 1M | 93A050122 |
| CAB-ETH-X-M03 M12-IP67 GETH-X CAB 3M | 93A050123 |
| CAB-ETH-X-M05 M12-IP67 GETH-X CAB 5M | 93A050124 |
| CAB-ETH-X-RJ ADAPTER CAB GETH-X to RJ45 | 93A050128 |
| CAB-F-ETH-M01 M12-IP67 GETH-X FLEX CAB1M | 93A050125 |
| CAB-F-ETH-M03 M12-IP67 GETH-X FLEX CAB3M | 93A050126 |
| CAB-F-ETH-M05 M12-IP67 GETH-X FLEX CAB5M | 93A050127 |
| CAB-F-M12-17P01 IP67 FLEX CAB TO CBX 1M | 93A050116 |
| CAB-F-M12-17P03 IP67 FLEX CAB TO CBX 3M | 93A050117 |
| CAB-F-M12-17P05 IP67 FLEX CAB TO CBX 5M | 93A050118 |
| CAB-GD03 M12 17P 3M isolated wires | 95A900052 |
| CAB-GD03 M12 F/L 3M | 93A050076 |
